KY-ZT FULL-AUTOMATIC INTELLIGENT RIGHT-ANGLE BOX FORMING MACHINE
Time：2023/3/25
Product introduction:
It is a fully automatic paper forming equipment, combining pneumatic and mechanical action, with fast speed and operation.Simple, efficient and environmentally friendly, with automatic paper feeding, hot press forming, automatic point counting Set, machine action program control, fault monitoring and other functions. This model uses its own hot air Gas generating device, suitable for single PE coated paper, kraft paper, etc.Paper-covered lunch boxes, paper lunch boxes, kraft paper food boxes, etc.
technical parameter:
It is a fully automatic paper forming equipment, combining pneumatic and mechanical action, with fast speed and operation.Simple, efficient and environmentally friendly, with automatic paper feeding, hot press forming, automatic point counting Set, machine action program control, fault monitoring and other functions. This model uses its own hot air Gas generating device, suitable for single PE coated paper, kraft paper, etc.Paper-covered lunch boxes, paper lunch boxes, kraft paper food boxes, etc.
technical parameter:
| 速度 | production | 30-40只/分钟pieces/min ( 实际以产品大小为准 ) |
| 最大尺寸 | Maximun size | 350*450mm |
| 最大送纸宽度 | Max paper convey width | 240mm |
| 适用材料 | Suitable material | 100-400/m² PE双淋膜纸等（PE Double-coated paper） |
| 总功率 | Total power | 3kw |
| 重量 | Total weight | 0.7T |
| 包装尺寸 | Overall dimension | 2000(L)*900(W)*2500(H)mm |
| 工作压力 | working air source | Air pressure 0.4-0.5Mpa 需配空压机（Need to buy compressor） |

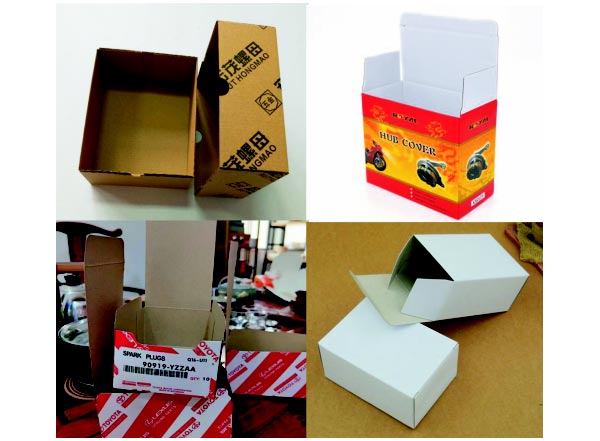

样品展示：

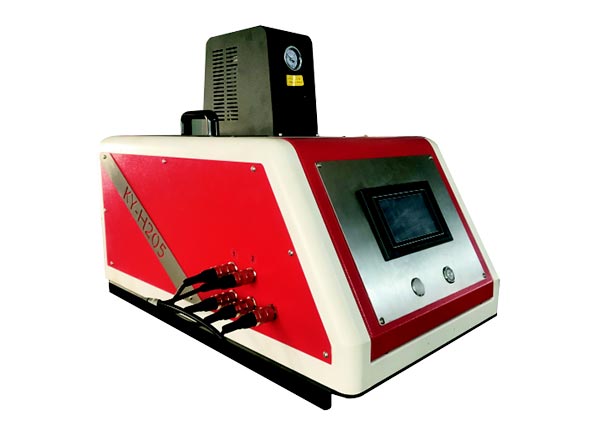

配套设备：
